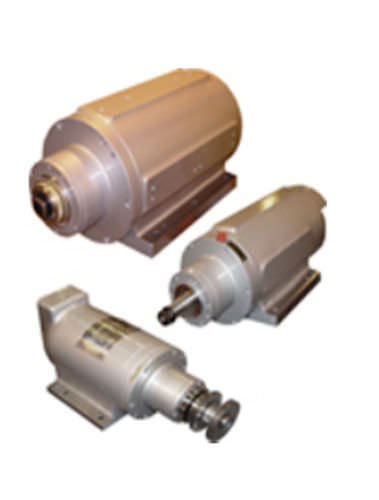

Milling motor spindle 6100 series

The 6100 Series is offered in seven sizes (motor frame size), three designs (for Boring, Milling and Grinding applications), and a large variety of horsepower and speed combinations. Models are available with non-ventilated, ventilated, and liquid cooled models for high-power and/or /severe operating conditions exist. The 6100 motorized spindle is a workhorse spindle and will deliver years of trouble-free performance. Standard 6100 Series Features: 100% Inch Spindle Design Foot Mounted Design Super Precision Class 7 Angular Contact Steel Ball Bearings Permanent Grease Lubricated Rubbing or Labyrinth Spindle Seal - Speed Dependant Enveloping Shroud - Front and Rear Dynamically Balanced to 1.0 micron Vibration Displacement Controlled Reference Edge- Block Style Housing 230/460V-3Ph-60Hz Electrics (special voltages sold as options) Tool Nose Arrangements: Milling Spindles- NMTB Nose and Hole Thru Arbor - Except Size 5 Includes an Integral Collet Chuck Nose - Boring Spindles are Drilled to Customer Specifications - Grinding Spindles- GT External Taper Nose SETCO's Goldline TCT Certificate Spindle Registration Standard 1-year Warranty
