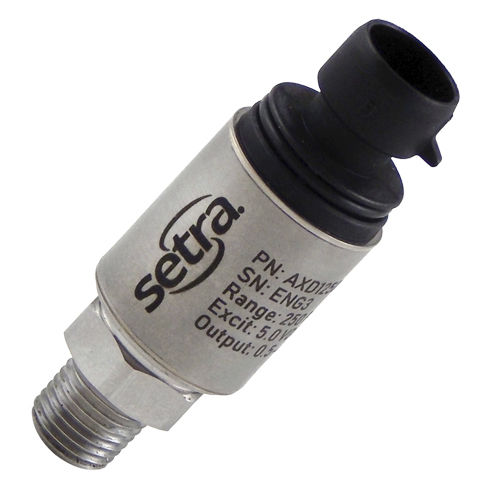

Relative pressure transducer AXD

capacitiveanalogfor LNG

The Accusense™ Model AXD industrial pressure sensor is designed for Industrial and OEM customers who require high performance, reliability and versatility at an affordable price. It offers exceptional ±0.25% FS accuracy for pressure ranges as low as 1 PSI up to 10,000 PSI to meet a multitude of demanding applications. The Model AXD features all stainless steel wetted materials 17-4PHSS when ordered as "AXD1" or 316LSS when ordered as "AXDH". High performance at an affordable price The Model AXD’s capacitive sensor design offers test & measurement grade accuracy at a low price point. The sensor comes standard with ±0.25% FS accuracy in ranges from 1 PSI to 10,000 PSI, exceeding most competitive products. The unit offers expanded performance through thermal compensation, bringing the TEB to <1.5% FS. Reliable. Robust. Rugged. The Model AXD industrial pressure sensor is designed and built to withstand demanding applications. The industrial non-oil filled construction, designed with our patented overpressure stop, enables the sensor to recover from overpressure conditions up to 8X the rated range. The AXD’s capacitive technology offers worry free operation vs. oil-filled MEMS designs, which have a high cost of failure if oil leaks into the application and contaminates costly equipment. AXD™ Pressure Transducer Features High accuracy sensor IP67 rated design Non-oil filled design Long-term stability: less than 0.5%/year Exceptional EMI/RFI Rugged design withstands high shock & vibration NIST traceable calibration Wide operating voltage: 9 VDC to 30 VDC Multiple electrical termination and pressure fitting options Reverse wire protection CE & RoHS compliant
