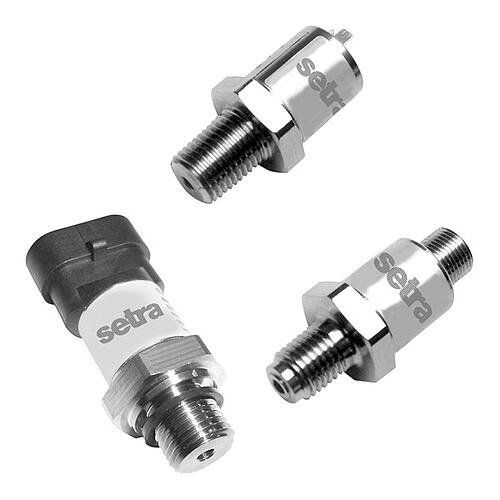

Relative pressure sensor 3100

thin-filmanalogthreaded

The Model 3100 sputtered thin film pressure sensor is designed for OEMs who require top of the line performance, reliability and stability at an affordable price. The Model 3100 offers exceptional 0.25% FS accuracy in pressure ranges from 75 PSI to 32,000 PSI; features an all welded stainless steel constructions for a robust design and IP67 seal for moisture and humidity protection. The Model 3100 offers a variety of different outputs, pressure connectors, and electrical connectors to satisfy the most challenging application requirements. In addition, voltage units are available with a dual pressure/temperature output. Best in Class Price to Performance - Strain Gauge technology provides a very linear and predictable output signals over wide temperature ranges, which enables Setra to provide an inherently stable and accurate sensor element in high volume and at low cost. The Model 3100 sensors constructed using a highly sophisticated automation process, where the sensors are manufactured in a Class 100 clean room. To ensure best in class accuracy and long term stability, each sensing element is thermally compensated to an accuracy of less than 0.005%/°C prior to leaving the clean room for final assembly. Thermally compensating the unit ensures improved accuracy and simplified conditioning electronics; while eliminating the need for calibration over elevated temperatures as a transducer. Unrivaled Quality - Setra understands the importance of quality in OEM applications, which is why we are always looking for ways to improve the quality rating of the product
