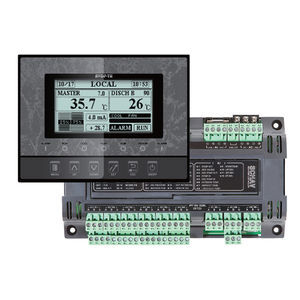

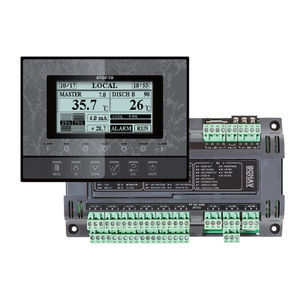

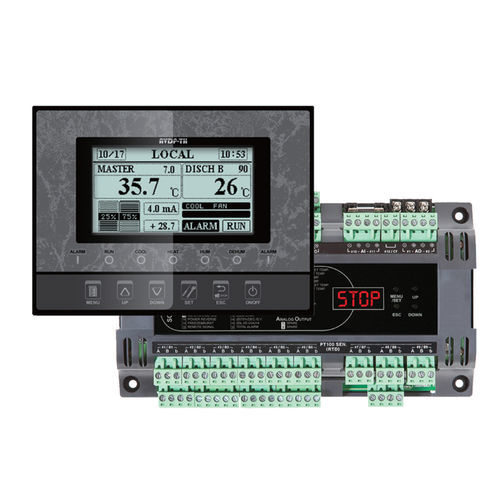

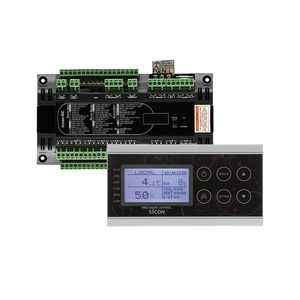

Chiller / heatpump controller SCHAV-SH

Applicable to various compressors, optimized logic for stable and efficient compressor control. Multi I/O port enables cost reduction without additional sequence circuit. Optimized defrost control logic enables energy saving with air heat source using. • Power : 100-240VAC 50/60Hz • I/O : DI : 16 points(24VDC) • DO : 17 points(250V 3A) SSR • AI : 9ch(PT100Ω) • 2ch(4-20mA) • 1ch(CT) • AO : 2ch(4-20mA or 0-10VDC) • Comm. : 1ch Mater / SLave • 1ch R-485 • 1ch Display • 1ch Remote Display
