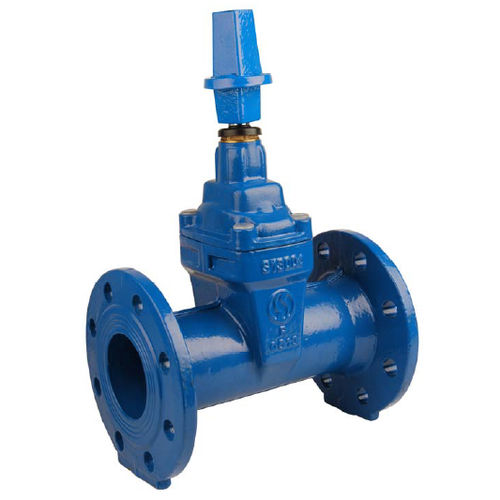

Gate valve 185 series

with handwheelfor waterflange

This unit features a full and total bore and has a tough body of stainless steel with a non-rising stem. It moves anticlockwise to close with a suitable sliding pad of up to DN200 to facilitate the wedge movement. The body is ductile iron which is EPDM-coated with heel positioning and no retention area. It features an NBR bonnet protection with 3 NBR o-ring on the stem and the possibility to change the stem gasket under pressure. The epoxy painting is a 5005 color of 250pm thickness with a dust-coat on the stem and a square drive unit. This product is ISO PN10/16 certified. SPECIFICATIONS : • - Full and total bore • - Stainless Steel non rising stem • - Clockwtse to close (CTC) • - Sliding pad ( to facilitating the wedge movement ) up to DN200 • - Ductile iron wedge EPDM • - No rétention area • - Heel positioning • - N BR bonnet gasket • - Screws bonnet protected • - 3 NBR O ring on stem • - Possibility to change stem gasket under pressure from DN80 to DN1000 • - Epoxy painting RAL 5005 color 250 pm thickness • - Dust-coat on stem • - PN10/16 flanges R.F. USE : • - For water distribution • - Min and max Température Ts : - 10°C to + 70°C • Max pressure Ps : 16 bars for PN16 flanged valves up to DN400 • Max pressure Ps : 10 bars for PN10 flanged valves from DN200 to 1000
