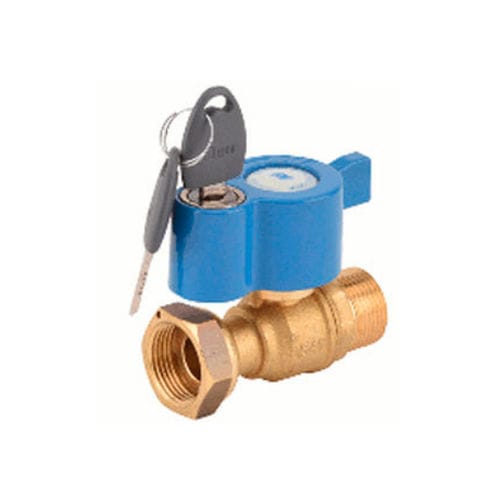

Ball valve 637 series

manualfor watermale-female

SPECIFICATIONS :  10 years manufacture warranty (the installation defects and wear defects are not covered by the guarantee)  Before or after water meter  PTFE packing  Solid ball  With free nut  Plumbing hole on the nut  With locking device with key SPECIFICATIONS : • - 10 years manufacture warranty (the installation defects and wear defects are not covered by the guarantee) • - Before or after water meter • - PTFE packmg • - Solid bail • - With free nut • - Plumbing hole on the nut • - With locking device with key USE: • - Water distnbution • - Min Température Ts : - 10°C • - Max Température Ts : + 120°C • - Max Pressure Ps : 20 bars RANGE : • - Free nut ! Male BSP with locking device SFERALOCKING Ref. 637 DN 1/2" to 1" • - Free nut ! Female BSP with locking device SFERALOCKING Ref. 638 DN 3/4* • - Locking device SFERALOCKING (without valve) Ref. 9810404* • - Passkey for locking device SFERALOCKING Ref. 9810403
