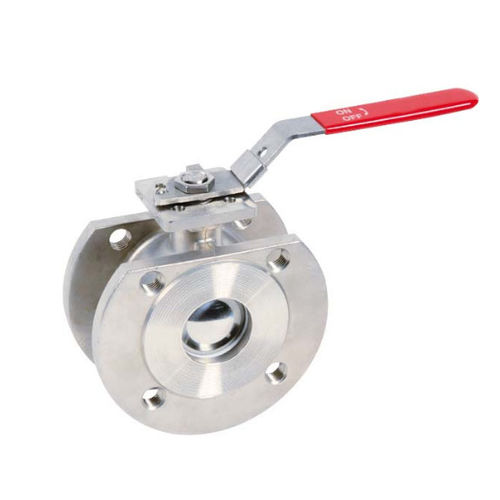

Wafer valve 771 seriesballleverhydraulic
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, hydraulic
- Media
- for compressed air
- Body
- flange-mounted, threaded, wafer, stainless steel, PTFE
- Applications
- for the chemical industry, for oil industry applications, for pharmaceutical applications, for compressors
- Other characteristics
- ISO, full-flow
- DN
Max.: 150 mm
(5.906 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
Wafer 2 pièces stainless Steel bail valve between flanges with full bore to open/dose networks of Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed air.
PTFE packing and gasket, FKM gasket on stem and PTFE filled with 15% glass fiber seat.
Locking device from DN25 to DN100.
Thanks to the ISO 5211 plate, an actuator can be installée! on the valve.
SPECIFICATIONS :
• - Full bore
• - Anti blow-out stem
• - PTFE filled with 15% glass seat
• - ISO 5211 mounting pad
• - Threaded holes flanges
• - Hollow body
• - Locking device from DN 25 to DN 100
USE :
Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed Min and max Température Ts : -20°C to + 180°C Max Pressure Ps : 16 bars ( see graph )
