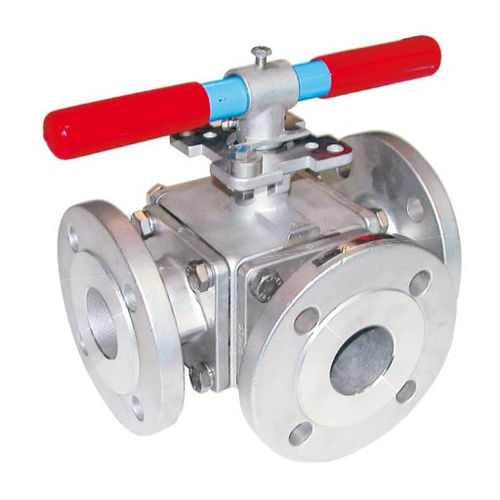

Ball valve 786 seriesmanualhydraulicfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual, hydraulic
- Media
- for compressed air
- Body
- flange, T, stainless steel, PTFE
- Applications
- for the chemical industry, for heating systems, for oil industry applications, ISO base
- Number of channels
- 3-way
- Other characteristics
- ISO, full-flow, with lockable toggle
- DN
Max.: 150 mm
(5.906 in)Min.: 25 mm
(0.984 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -30 °C
(-22 °F)
Description
SPECIFICATIONS ;
• - Full bore
• - Anti blow-out stem
• - Double antistatic device
• - PTFE seat filled with glass
• - Lockmg device
• - ISO 5211 mountmg pad
• - Tightnesson 3ways
• - L or T port
• - Trunnion mounted bail valve from DN100 to DN150
USE:
• - Chemical industries, petrochemical industries, hydraulic installation, heating. water distnbution. compressed
• - Min and max Températures Ts : -30°C to + 150°C
• - Max Pressure Ps : 16 bars ( see graph )
• - Do not use for vacuum
RANGE :
• - 3 ways bail valve stainless Steel body L port Ref. 785 DN 25 to DN 150
• - 3 ways bail valve stainless Steel body T port Rof. 786 DN 25 to DN 150 ENDS :
F langes R. F. PN16
