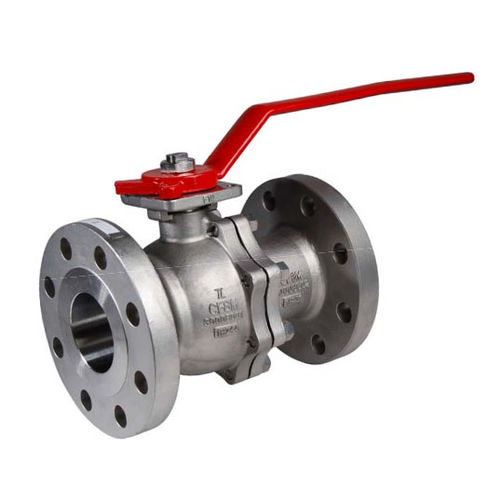

Fire-safe valve 769 series

ballleverdistribution

2 pièces stainless Steel split body bail valve ICP with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air. Bail valve with firesafe certificate ISO 10497 to reduce risks in case of fire. Fugitive émission according to EN 15848-1:2006 for an excellent tightness on the stem and to prevent external leakage. PTFE seat for a température up to +230*C. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device. Handling possible with gearbox or stainless Steel handle. Thanks to the ISO 5211 plate, an actuator can be installée! on the valve. SPECIFICATIONS : • - Full bore • - Anti blow-out stem • - PTFE seat • - Locking device • - ISO 5211 mounting pad • - 2 pièces type ( Split body ) • - Class 300 PN50 RF flanges • - Antistatic device • - Fire safe ISO 10497 : 2004 • - Fugitive émissions EN 15848-1 : 2006 • - Graphite packmg + FKM O ring on stem • - With exhaust hole in the bail ( - located - in - the top of the bail to avoid overpressure in it ) • - Blue pamting colour RAL 5009 or Black - pamting - colour - RAL 9004. - 5-15 microns thickness USE : • - Chemical industries, petrochemical industries, hydraulic installation, heating. water distribution, compressed • - Min and max Température Ts : -50°C to + 230°C • - Max Pressure Ps : 50 bars • - Vacuum 10-* torr • - Compressed air (ambient température) : 8 bars maximum • - Steam : 12 bars maximum
