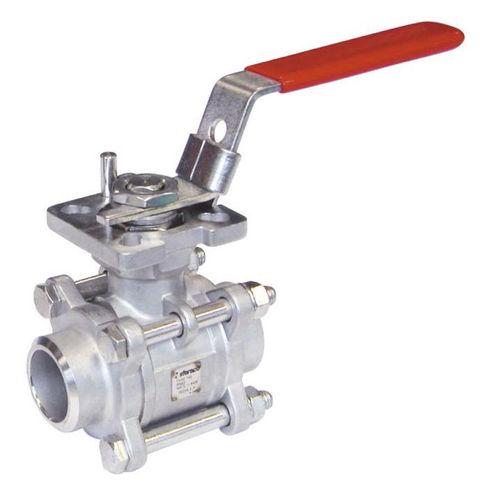

Ball valve 747 seriesleverwith handwheeldistribution
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, with handwheel
- Function
- distribution
- Media
- for compressed air
- Body
- female-female, 3-piece, stainless steel, PTFE, graphite
- Applications
- for the chemical industry, heating, for oil industry applications, for pharmaceutical applications, ISO base
- Other characteristics
- ISO, high-performance, high-temperature, anti-static, ATEX
- DN
Min.: 0.25 in
Max.: 4 in
- Pressure
40 bar, 63 bar
(580.2 psi, 913.7 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 220 °C
(428 °F)
Description
3 pièces stainless Steel bail valve fully encapsulated bolts with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air.
Fugitive émission according to TA LUFT for an excellent tightness on the stem and to prevent external leakage.
PTFE filled with graphite packing, FKM O ring gasket on stem and PTFE filled with stainless Steel seat.
Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device.
Handling with locking device, on request possible with handwheel or stem extension.
Thanks to the ISO 5211 plate, an actuator can be installed directly on the valve.
3 pièces stainless Steel bail valve fully encapsulated bolts with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air.
Fugitive émission according to TA LUFT for an excellent tightness on the stem and to prevent external leakage.
PTFE filled with graphite packing, FKM O ring gasket on stem and PTFE filled with stainless Steel seat.
Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device.
Handling with locking device, on request possible with handwheel or stem extension.
Thanks to the ISO 5211 plate, an actuator can be installed directly on the valve.
