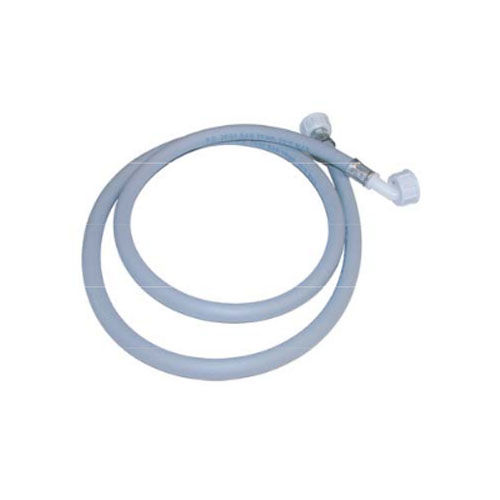

Hydraulic hose 1371 series

rubberplasticsanitary

SPECIFICATIONS : • - For washing machine • - Rubber pipe with plastic connection D.10 mm for flexible hose USE: • - Min Température Ts : 0°C • - Max Température Ts : + 25°C for flexible hose Ref. 1371,1373 + 60°C for discharge flexible with support Ref. 1372,1374 and 1375 + 90° C for fitting Ref. 1376 • - Max Pressure PN : 20 bars for flexible hose Ref.1371 et 1373 1 bar for discharge flexible with support Ref. 1372,1374 and 1375 Flexible hose 90° ends - Female / - Female 3/4’ BSP - threaded. - 1500 mm - length Ref.1371001 Flexible hose 90° ends - Female / - Female 3/4" BSP threaded. - 2000 mm - length Ref.1371002 Flexible hose 90° ends - Female / - Female 3/4" BSP threaded. - 2500 mm - length Ref.1371003 Flexible hose straight ends Female / Male 3/4" BSP threaded. 2000 mm length Ref.1371004 Discharge flexible - 0 - 19x24 - mm with support. 1500 mm - length - Ref. 1372001 Discharge flexible - 0 - 19x24 - mm with support. 2000 mm - length - Ref. 1372002 Discharge flexible - 0 - 19x24 - mm with support. 2500 mm - length - Ref. 1372003 Flexible hose straight ends Female / Female - 3/4" BSP threaded. 1500 - mm - length Ref.1373001 Flexible hose straight ends Female / Female - 3/4" BSP threaded. 2000 - mm - length Ref.1373002 Flexible hose straight ends Female / Female - 3/4" BSP threaded. 2500 - mm - length Ref.1373003
