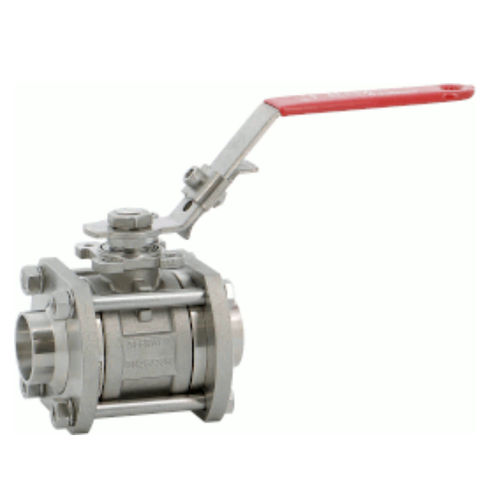

Ball valve ELITBW

leverdistributionfor water

3 pièces stainless Steel bail valve with rotating ends, full or reduced bore for pharmaceutical, cosmetics and food industries networks. Easy installation thanks to the rotatings ends. TFM1600 packing with 3 chevrons gaskets and one thrust washer on stem, body gasket and seat in TFM1600. Fugitive émission according to EN 15848-1:2006 B-H Class for an excellent tightness on the stem and to prevent external leakage. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the double antistatic device. Valve in accordance with the régulation (EC) N* 1935/2004, FDA and USP Class VI on request. Handling with lockable handle, locking oval handwheel or stem extension with IS05211 plate. Thanks to the ISO 5211 plate, an actuator can be installed on the valve. SPECIFICATIONS : • - Full or reduced (venturi) bore • - Anti blow-out stem • - Packing wth 3 chevrons gaskets • - Double antistatic device (bail between stem-body and stem-ball) • - Fugitive émissions according to ISO 15848-1 BH Class • - Lockable handle • - Oval handwheel and stem extension on request • - ISO 5211 mounting pad • - Rotatmg ends • - EC 1935/2004 for food industries • - Seat wth notches for automatic décompression in the dead area • - With exhaust hole in the bail ( located in the top of the bail to avoid overpressure in it in opened position ) • - Roughness Ra 0.4 for the bail. Ra 0.8 for the ends USE : • - Pharmaceutical industries, cosmetics and food indsutries • - Vacuum 10-J bar (without upstream pressure) • - Min and max Température Ts : -50°C to + 180°C • - Max Pressure Ps : 63 bars up to DN40. 50 bars for DN50 ( see graph under )
