Characteristics
- Type
- ball
- Operation
- manual
- Function
- distribution
- Media
- for water, for compressed air
- Body
- monoblock, stainless steel, PTFE
- Applications
- chemical, heating
- DN
Min.: 0.125 in
Max.: 1 in
- Pressure
63 bar
(913.7 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 180 °C
(356 °F)
Description

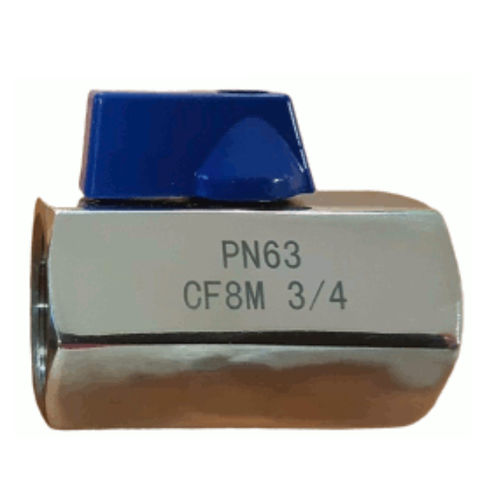

Mini stainless Steel bail valve monoblock with reduced bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution and compressed air.
2 FKM O rings on stem and PTFE filled with 15% Glass fiber seat for a température up to +180°C.
SPECIFICATIONS :
• - Reduced bore
• - Anti blow-out stem
• - 2 FKM O rings on stem
• - PTFE filled with 15% glass fiber seat
• - Solid bail
• - Monoblock type
USE:
Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed Min and max Température Ts : -20°C to + 180°C Max Pressure Ps : 63 bars ( see graph )
