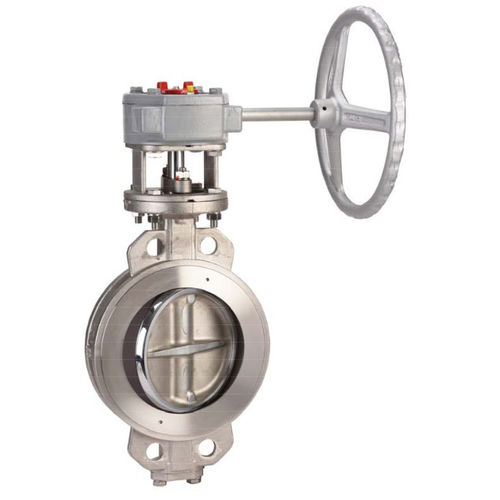

Butterfly valve 1113 series

with handwheelwaferdouble-offset

This wafer type device offers 100% tightness with ISO PN25 flanges. The double eccentric device is bidirectional with a preferential flow direction indicated by an arrow. It complies with fire safety according to ISO 10497:2010 regulations and has an ISO 5211 mounting pad. It features a stainless steel CF8M disc and full crossing stem. The ductile iron handle has 10 positions and a locking device up to DN150. The gear box ranges from DN200 to DN600. It has primer painting EP-02 epoxy red oxide primer RAL2012 at 10 pm thickness for the carbon steel style, and it has finish painting of EP-04 epoxy finish enamel grey RAL7045 at 30 pm thickness. SPECIFICATIONS : • - 100% tightness • - Wafer type • - BetweenPN25orPN16flanges • - Double offset • - Bidirectional with preferential flow direction indicated by the arrow • - Fire safe according to ISO 10497 : 2010 • - ISO 5211 mounting pad • - Stamless Steel CF8M dise • - Full Crossing stem • - 10 positions ductile iron handle. with locking device up to DN150 • - GearboxfromDN200toDN600 • - Inorganic zinc rich primer, gray color. 10 pm thickness • - Finish paintmg heat resisting aluminum Silver color RAL 1504. 30 pm thickness • - Ductile iron EN GJS-400-15 handle with silver painting RAL 9006 color USE: • - Heatmg. geothermics. industnal cold. shipbuilding. petrochemical • - Steam : 10 bars maximum • - Min and max Température Ts : - 29°C to + 210°C • - Max Pressure Ps : 25 bars ( see graph ) • - When using at dead end of pipeline, reverse preferential flow direction RANGE.* • - Wafer type with carbon Steel body . and handle Ref. 1113 DN 50 to DN 150 • - Wafer type with carbon Steel body . and gear box Ref. 1113 DN 200 to DN 600 • - Gear box Ref. 1193 from DN 50 to DN 350
