Butterfly valve 1100 seriesleverfor waterwafer
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Media
- for water
- Body
- wafer, PVC, plastic
- Applications
- for swimming pool
- Other characteristics
- ISO
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
6 bar, 10 bar
(87 psi, 145 psi)- Temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)
Description

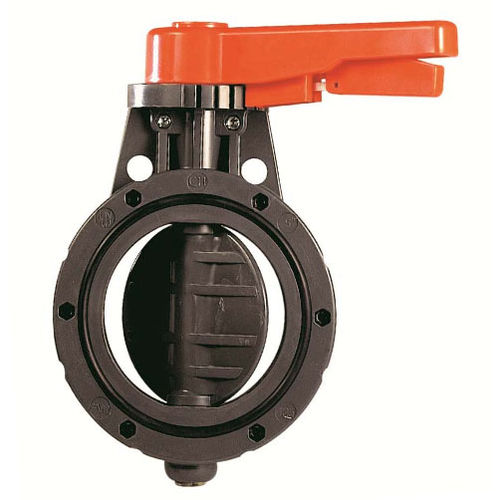

The 1100 series hand lever infused plastic butterfly valve utilizes ISO 5211 mounting pad. This is a wafer-based valve that integrates GN 10 flange designs. Its lever fitting is upgraded with a locking mechanism, which allows seven possible alignments. This device can handle operations within temperature range of 0 to 40 degrees Celsius. It generates 6 to 10 bar pressure range with reference to DN 125 and DN 150 to 200.
Catalogs
CATALOGUE 2020
364 Pages
