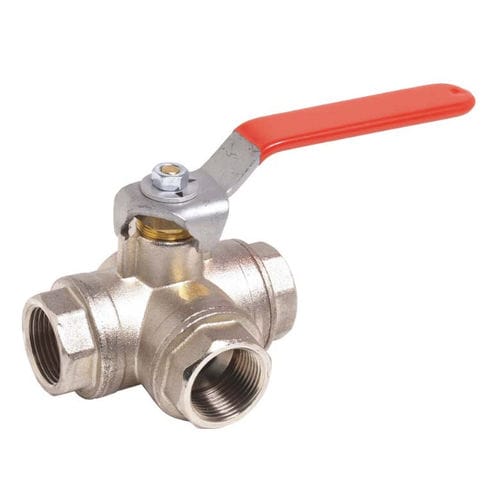

Ball valve 513 series

leverfemaleT

The valve is generally utilized for handling of every type of standard fluids, in applications wherein a total pressure PN of 16 bars, or total temperature Ts range of -10 to 120 degrees Celsius are involved. It features a reduced bore, a packing made of PTFE material, two varying positions, 3-way tightness configurations, and an optional T or L port orientation. SPECIFICATIONS : • - Reduced bore • - 2 Positions • - PTFE packmg + 2 NBR o-ring • - No anti blow out stem • - Tightnesson 3ways • - L or T port USE: • - For ail common fluids • - Min and max Température Ts : -10“C to + 120°C • - Max Pressure Ps : 16 bars ( see graph ) • - Differential pressure : 5 bars maxi RANGE • - Threaded female BSP cylindrical. L port Ref. 513 from DN 1/4" to T • - Threaded female BSP cylindrical. T port Ref. 514 from DN 1/4* to 2" ENDS : Threaded BSP female cylindrical ends standards: • - Fabrication according to ISO 9001 : 2015 and ISO 14001 :2015 • - DIRECTIVE 2014/68/EU : Products excluded from ( Article 1, § 2.b ) Threaded female BSP cylindrical ends according to ISO 228-1
