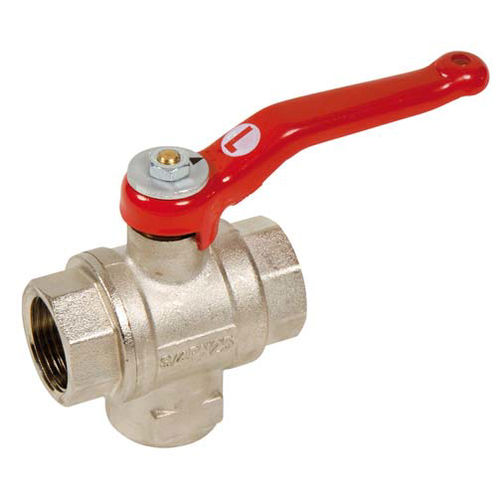

Ball valve 534 series

leverfemaleT

Sferaco 534 series 3-way brass ball valve has a reduced bore. It can be used for all common fluids. It has two positions and features a PTFE packing with 2 NBR o-rings. It has tightness on three ways and has L as well as T port. It provides maximum pressure (PN) of 16 bars and differential pressure of maximum 5 bars. It can handle temperature in the range of -10°C to + 120°C. SPECIFICATIONS : • - Reduced bore • - 2 Positions • - PTFE packmg + 2 NBR o-ring • - No anti blow out stem • - Tightnesson 3ways • - L or T port USE: • - For ail common fluids • - Min and max Température Ts : -10“C to + 120°C • - Max Pressure Ps : 16 bars ( see graph ) • - Differential pressure : 5 bars maxi RANGE • - Threaded female BSP cylindrical. L port Ref. 513 from DN 1/4" to T • - Threaded female BSP cylindrical. T port Ref. 514 from DN 1/4* to 2" ENDS : Threaded BSP female cylindrical ends standards: • - Fabrication according to ISO 9001 : 2015 and ISO 14001 :2015 • - DIRECTIVE 2014/68/EU : Products excluded from ( Article 1, § 2.b ) Threaded female BSP cylindrical ends according to ISO 228-1
