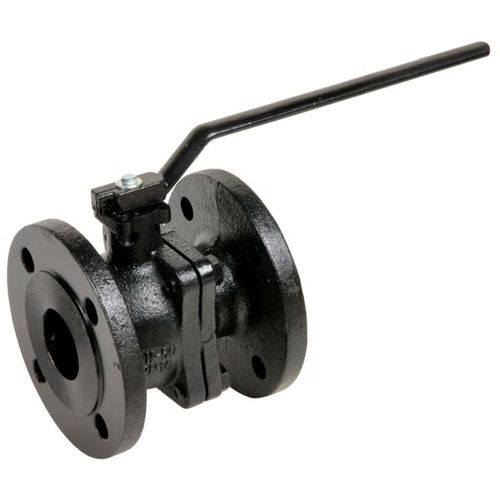

Ball valve 507 series

leverflangecast iron

This product that has a hollow stainless steel ball is specially used for all types of common liquids out there. It is a full bore anti blow-out stem with a minimum temperature of -10°C and a maximum temperature that ranges to + 200°C. It has a maximum pressure of 16 bars so do not use it with steam. Its black color RAL 9004 has a 5-15 microns thickness and it consists of ISO 5211 mounting pad. It is made up of PTFE and has a stem with 0 ring in FKM. Cast iron bail valve with ISO 5211 mounting pad full bore for ail common fluids of 2nd group. 2 FKM O Ring and 1 PTFE gasket on stem, PTFE body gasket and PTFE seat. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device. Thanks to the ISO 5211 plate, an actuator can be installée! on the valve. SPECIFICATIONS : • - Full bore • - Anti blow-out stem • - PTFE packing and stem O ring in FKM • - ISO 5211 mounting pad • - PN10/16 flanges R.F. ( accordmg to DN. flanges holes are threaded or not ) • - Hollow stainless Steel bail • - Black painting colour RAL 9004.5-15 microns thickness USE: • - For ail common fluids of 2K group • - Min and max Température Ts : - 10°C to + 200°C • - Max Pressure Ps : 16 bars • - Do not use wlth steam • - Do not use wlth compressed air RANGE; Cast iron PN10/16 flanges R.F. with stainless Steel bail from DN40 to DN150 Ref. 505
