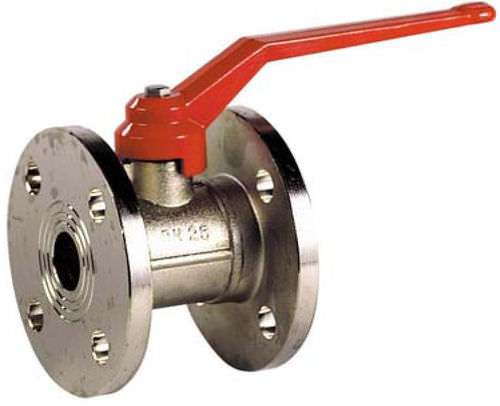

Ball valve 504 series

leverflangethreaded

The product is designed with red aluminium handle and a solid ball. It is suitable for all common fluids with PTFE packing. The product works at a temperature ranging from 10 °C up to + 120°C. Additionally, it has a maximum pressure of 16 bar for DN 50, 15 bar for DN 65, 12 bar for DN 80, and 9 bar for DN 100. Cast iron bail valve with ISO 5211 mounting pad full bore for ail common fluids of 2nd group. 2 FKM O Ring and 1 PTFE gasket on stem, PTFE body gasket and PTFE seat. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device. Thanks to the ISO 5211 plate, an actuator can be installée! on the valve. SPECIFICATIONS : • - Full bore • - Anti blow-out stem • - PTFE packing and stem O ring in FKM • - ISO 5211 mounting pad • - PN10/16 flanges R.F. ( accordmg to DN. flanges holes are threaded or not ) • - Hollow stainless Steel bail • - Black painting colour RAL 9004.5-15 microns thickness USE: • - For ail common fluids of 2K group • - Min and max Température Ts : - 10°C to + 200°C • - Max Pressure Ps : 16 bars • - Do not use wlth steam • - Do not use wlth compressed air RANGE; Cast iron PN10/16 flanges R.F. with stainless Steel bail from DN40 to DN150 Ref. 505
