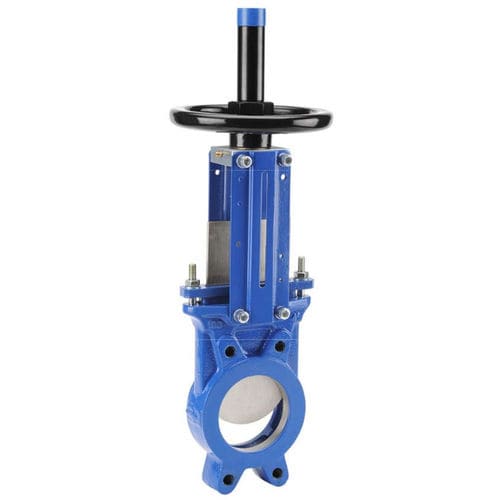

Knife gate valve 176 series

with handwheelfor waterfor liquid food products and beverages

This product comes with open and closed valve. It has rising rotating system and non rising lever or chain handwheel. It has no tightness because its loose factor is 2% of Kvs, its between flanges is ISO PN10. It also comes with deflector which is optional. It is made of 50% epoxy and 50% polyester painting in blue color. It is also equipped with bipolar sensor 0 + C and voltage AC 15-240V. SPECIFICATIONS : • - Opened or closed valve • - Rising non rotating stem, non rising handwheel • - Unidirectional tightness ( Respect the flow direction indicated by the arrow ) • - Weak head loss • - Between flanges PN10 • - Full Crossing threaded lower holes and blind threaded top holes • - With handwheel • - With lever or Chain handwheel ( option ) • - Possible with bipolar sensor O + C. voltage AC 15-240V 3A. IP66 type XCK M115C • - Deflector ( option ) • - 50% epoxy 50% polyester paintmg blue colour RAL 5005 • - Other seats on request ( FKM. PTFE. SILICONE ...) USE : • - Water. water treatment. Chemical pulp. powders. food mdustry. chemistry • - Min and max - Température Ts - : - 10°C to + 90°C for cast iron body with NBR seat Ref.170 • - Min and max - Température Ts - : - 20°C to + 130°C with WHITE EPDM seat( on request ) • - Min and max - Température Ts - : - 10°C to + 180°C with FKM seat( on request ) • - Min and max - Température Ts - : + 0°C to + 180°C with PTFE seat ( on request ) • - Min and max - Température Ts - : - 20°C to + 200°C with SILICONE seat ( on request ) • - When using powders. inverse flow direction
