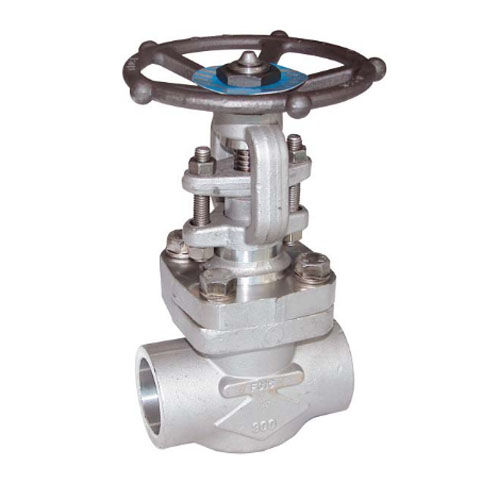

Gate valve 152 series

with handwheelpetroleumfor steam

The 152 series is made up of carbon steel with Vz stellite. This device reduces bore with rising stem with no need to rotate. It is has a bolted bonnet and gland pack. The valve also has a weight of 800 lbs, and a trim of 10 standard SS 316 for the stainless steel types. In addition, it can be used with a temperature range of -29°C to +425°C for the petroleum industry, steam and high pressure applications with maximum pressure Ps of 138 bars. Forged stainless Steel gâte valve TRIM10 SW Class 800 standard bore for petroleum industry, steam, oil and gas and high pressure. Rising non rotating stem (OS&Y) with bolted bonnet. Graphite packing and stainless Steel + graphite bonnet gasket. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22. SPECIFICATIONS : • - Standard bore • - Rismg stem non rotating (OS&Y) • - Bolted bonnet and gland pack • - Forged stainless Steel F316 • - Trim 10 standard AISI 316 • - Class 800 USE: • - Petroleum industry. steam. high pressure • - Min and max Température Ts : - 49°C to + 538°C • - Max Pressure Ps : 132 bars ( see graph )
