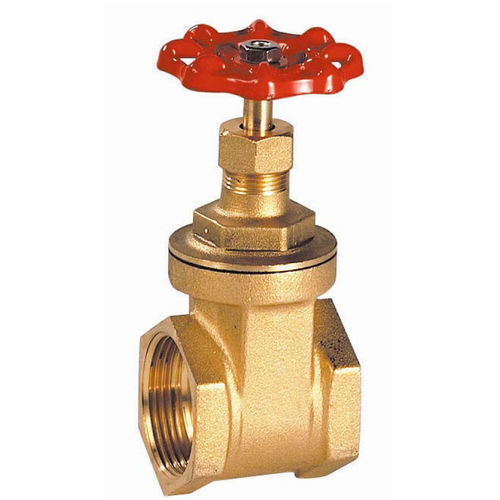

Gate valve 102 series

with handwheeldistributionfor water

The 102 series unit features a lot of improvements compared to its predecessors. It has double o-rings on its stem, a female-to-female BSP cylindrical and single wedge disc, an inside screw stem and a rotating non-rising stem. The 102 series even has a reduced bore. It is used in watering and water distribution and has a minimum and maximum temperature of -10°C and +80°C respectively. Brass gâte valve female threaded BSP full bore to close water distribution and watering installation. Rotating non rising stem with inside screw. EPDM packing on stem and fiber bonnet gasket. SPECIFICATIONS : • - Full bore • - Rotatmg non rising stem • - Inside screw stem • - Brass • - Single wedge dise • - Female / Female BSP cylmdrical ends • - EPDM packing • - No tightness , loss factor : 0.5% of Kvs USE: • - Water distnbution and watering • - Min and max Température Ts : - 10°C to + 80°C • - Max Pressure Ps : 16 bars • - Do not use for firefighting networks
