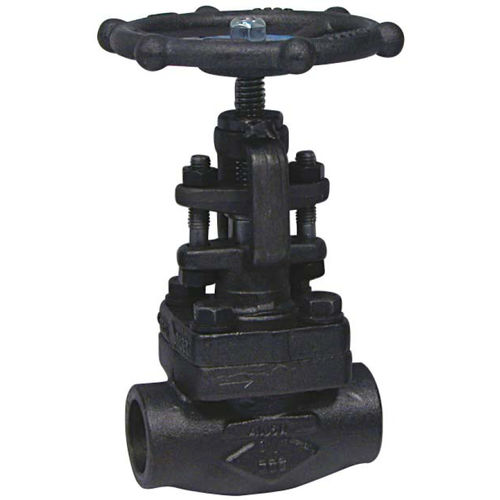

Globe valve 412 series

with handwheelpetroleumfor steam

This product is specifically designed to show consideration to the flow of direction that is indicated by an arrow, it also has lesser bore, increasing rotating stem and bolted bonnet and gland pack. The material used for this product can either be forged Carbon steel or stainless steel. It has a Vz stellite of Trim 8 for carbon steel valves, a Trim 10 standard SS 316 for stainless steel types and it weighs 800 lbs. This product is to be used for Petroleum industry with steam and high pressure. For SS types with Ref.452/453 the temperature range is from - 29°C to + 538°C and for carbon steel types with Ref. 412/413/414 the temperature range is from - 29°C to + 425°C. Its maximum pressure is 138 bar. Forged carbon Steel globe valve TRIM8 SW Class 800 standard bore for petroleum industry, steam, oil and gas and high pressure. Rising and rotating stem (OS&Y) with bolted bonnet. Graphite packing and stainless Steel + graphite bonnet gasket. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22. SPECIFICATIONS : • - Respect the flow direction ( mdicated by the arrow ) • - Standard bore • - Rismg rotating stem (OS&Y) • - Bolted bonnet and gland pack • - Forged Carbon Steel A105N • - Vi stellite ( Trim 8 ) • - Class 800 USE: • - Petroleum industry. steam. high pressure • - Min and max Température Ts : - 29°C to + 425°C • - Max Pressure Ps : 136 bars ( see graph )
