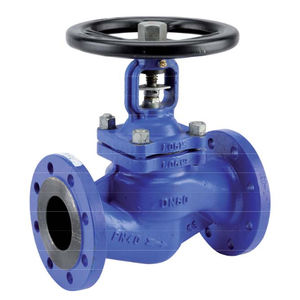

Globe valve 471 series

with handwheeldistributionfor hydrocarbons

The valve’s stem and seat is made from stainless steel. It follows the flow direction indicated by the arrow. The valve is also made with rising rotating stem and handwheel, and is made primarily for common fluids from the second group, but not to be used for thermic fluids. The stem of this valve must always be kept greased. Other features include bolted bonnet and tightened gland packing during setting. Cast iron globe valve flanged PN16 for setting or closing on networks of Heating, water distribution and watering. Graphite packing an gasket. Bolted bonnet and packing for an easy maintenance. SPECIFICATIONS : • - Respect the flow direction indicated by the arrow • - Rismg rotating stem and handwheel • - Bolted bonnet and gland pack • - Stainless Steel seat • - PN16 Flanges R.F. • - Paintmg RAL 7011 grey color. 90 pm thckness USE: • - Heatmg. water distribution and watering • - Min and max Température Ts : - 10°C to + 120°C • - Max Pressure Ps : 16 bars up to DN150. 14 bars for DN200. 9 bars for DN250 (see graph page 3) • - Keep greased the stem • - Do not use for steam • - Tighten the gland packing dunng the settmg
