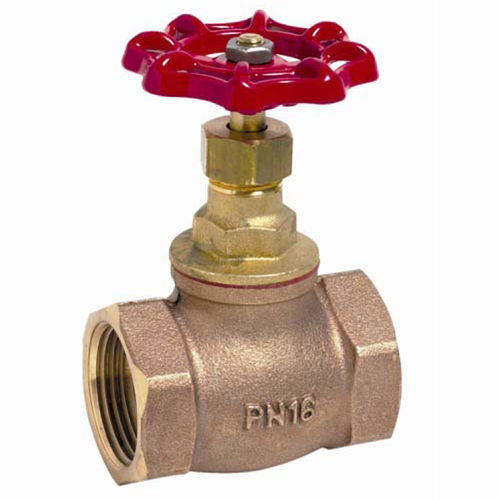

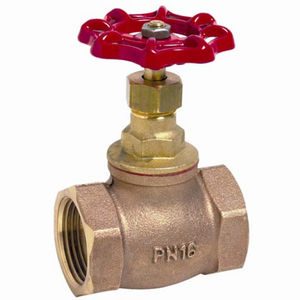

Globe valve 460 serieswith handwheelfor steamfemale-female
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Media
- for steam
- Body
- female-female, brass, bronze, PTFE
- DN
Max.: 2 in
Min.: 0.25 in
- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: -10 °C
(14 °F)
Description
This valve contains a bronze body and a PTFE or brass disc seal. It operates with common fluids of 2na group with temperatures that range from -10°c up to 110°c. This unit also has the ability operate at 16 bar of maximum pressure. It contains a threaded female BSP cylindrical opening and a rising rotating stem and hand wheel.
SPECIFICATIONS :
• - Respect the flow direction ( mdicated by the arrow )
• - Rising rotating stem and handwheel
• - PTFE packmg
• - Bronze body
• - PTFE or brass dise
• - Threaded female BSP cylindncal
USE:
• - For common fluids of 2K group
• - Min and max Température Ts : - 10°C to + 110°C
• - Max pressure Ps : 16 bars ( see graph )
• - Do not use for steam
