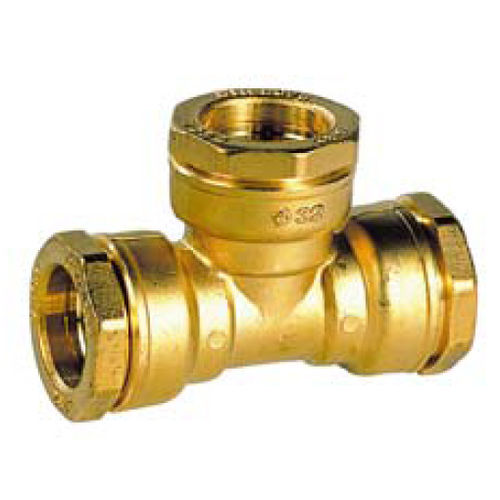

Hydraulic fitting 864 series

threadedTrubber

The 861 series brass single-ferrule attachment integrated an enhanced coupling tool for improved tightening function. Nitrile butadiene rubber material is used for its gasket. Its system allows easy and trouble-free installation on a pipe assembly without altering the coupling setup. It operates under 4 to 40 degrees Celsius working temperature, obtaining maximum pressure range of 16 bar. This arrangement is ideal for water distribution applications. SPECIFICATIONS : • - Brass couplmg for external tightening • - NBR gasket • - Installation on pipe without dismantling the couplmg • - 10 years manufacture warranty (the installation defects and wear defects are not covered by the guarantee) USE: • - Water distnbution • - Water with glycol up to 30% • - Min and max Température Ts : ♦ 4°C to + 40°C • - Max Pressure Ps : 16 bars up to DN63.10 bars over RANGE; FOR PPL y ETHYLENE PIPE : • - Female coupling Ref.860 from DN 1/2*-D.20 to DN 3“-D.90 • - Male coupling Ref.861 from DN 1/2“-D.20 to DN 3‘-D.90 • - Reduced male coupling Ref.862 from DN 3/8“-D.20 to DN1“1/2-D.63 • - Double connection coupling Ref.863 from DN 20 to DN 90 • - T coupling Ref.864 from DN 20 to DN 90 • - T male/female coupling Ref.865 from DN 20-1/2*M-3/8“F to DN 90-3"M-2“1/2F • - L double connection coupling Ref.866 from DN 20 to DN 75
