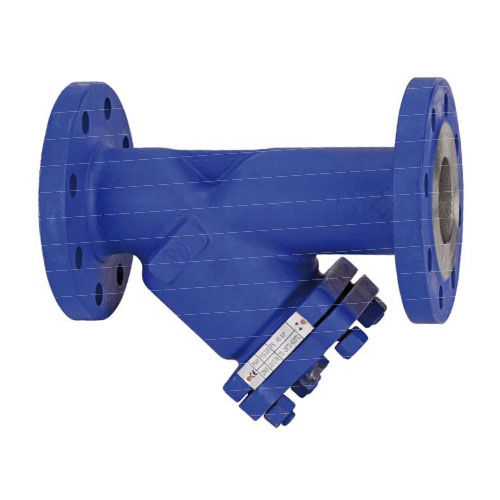

Strainer filter 235 series

liquidcompressed airwith cartridge

The 235 Series assembled by Sferaco, is a steel Y strainer that features a removable stainless steel filter. This device is equipped with a bolted bonnet consisting of a BSP threaded draining cap. Moreover, it is capable of a horizontal or vertical position with its descendant fluid. This Sferaco steel Y strainer is utilized for all standard liquids, and operates with a maximum pressure of 40 bars. Furthermore, it has a minimum working temperature of 20°C and operates up to an utmost temperature of + 400°C. Carbon Steel Y strainer flanged PN40 for filtration of high température network, hot water, steam, compressed air. water treatment and irrigation. Strainer with removable filter and bolted bonnet Threaded BSP draining cap allowing to install a draining valve. SPECIFICATIONS : • - Removable stainless Steel filter • - R.F. Flanged PN25/40 . PN40 from DN200 to 300 • - Horizontal or vertical position with descendant fluid (respect the flow direction indicated by the arrow) • - Mesh 1mm up to DN 50,1.25 mm from DN 65 to 80.1.6 mm from DN100 to 200. 4 mm over • - Bolted bonnet with drainmg cap threaded BSP • - Blue paintmg RAL 5002. 80 pm thickness USE : • - For ail common fluids of 2rc group • - Min Température Ts : - 29°C • - Max Température Ts :+425°C • - Max Pressure Ps : 40 bars ( see graph )
