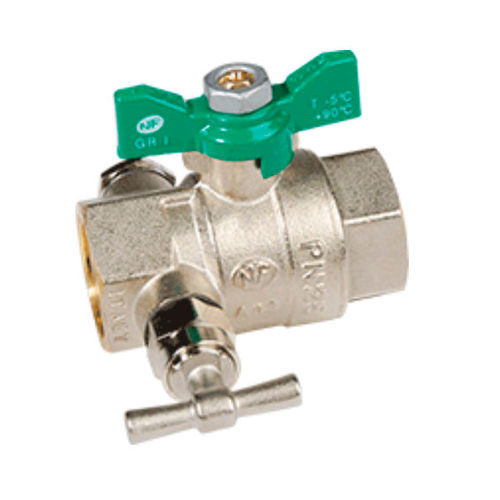

Ball valve 526 series

manualfor waterfemale-female

It has a fabrication according to NF079 and comes with anti blow-out stem. Its green colored flat steel or aluminum handle is reversible and has a solid rilled ball up to DN 11/2 to prevent from water stagnation between the ball and the body. It is also possible with locking device for DN1/2 and 3/4. Its minimum and maximum temperature capability will be indicated on the handle marking. For your convenience, it has 10-year warranty which doesn't apply for installation defects and wear defects. This product is made from Italy. SPECIFICATIONS ; • - Fabrication accordmg to NF079 • - 10 years manufacture warranty (the installation defects and wear defects are not covered by the guarantee) • - Made m Italy • - Full bore • - Anti blow-out stem • - Solid bail • - Drilled bail ( to avoid water stagnation between bail and body ) up to DN 1"l/2 • - PTFE G200 packmg + O ring EPDM 4270 on stem • - Anti-corrosion fiat Steel handle or butterfly aluminium handle • - Body marking : Made in Italy. NF.ACS.PN on one face and Logo.DN.fabrication date Year/Month. brass quality on the other face • - Handle marking : On/Off. Airaga . Made in Italy . Mm and max Température . acoustic group I • - Réversible handle green color RAL 6029 • - Possible with locking device for DN1/2* and 3/4“ ( Ref. 9810404 ) USE: • - Watering. water distnbution. heatmg. drinkable water. air-conditioning • - Min Température Ts : - 5°C • - Max Température Ts : + 90°C ( +110°c temporarily dunng 1 hour max )
