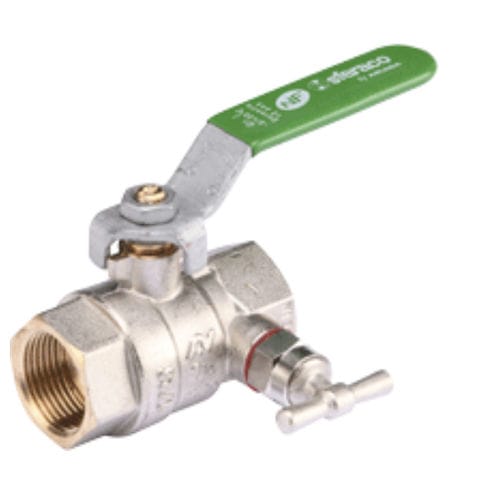

Ball valve 506 series

leverfor waterfemale-female

The PTFE G200 packing has a reversible handle green color of RAL 6029 with a possible locking device for DN1/2 and 3/4. It also has a full bore and anti blow-out stem with fabrication according to NF079. Its solid and rilled ball is designed to prevent water stagnation between the ball and the body. It was technically made with on/off controller and has a minimum and maximum temperature acoustic group I. SPECIFICATIONS ; • - Fabrication accordmg to NF079 • - 10 years manufacture warranty (the installation defects and wear defects are not covered by the guarantee) • - Made m Italy • - Full bore • - Anti blow-out stem • - Solid bail • - Drilled bail ( to avoid water stagnation between bail and body ) up to DN 1"l/2 • - PTFE G200 packmg + O ring EPDM 4270 on stem • - Anti-corrosion fiat Steel handle or butterfly aluminium handle • - Body marking : Made in Italy. NF.ACS.PN on one face and Logo.DN.fabrication date Year/Month. brass quality on the other face • - Handle marking : On/Off. Airaga . Made in Italy . Mm and max Température . acoustic group I • - Réversible handle green color RAL 6029 • - Possible with locking device for DN1/2* and 3/4“ ( Ref. 9810404 ) USE: • - Watering. water distnbution. heatmg. drinkable water. air-conditioning • - Min Température Ts : - 5°C • - Max Température Ts : + 90°C ( +110°c temporarily dunng 1 hour max ) • - Max Pressure Ps ( excepted drain valves types ) : 40 bars up to DN 3/4*, 25 bars from 1“ to 1*1/4.16 bars over • - Max pressure Ps for drain valves types : 25 bars from 1/2* to 1"1/4. 16 bars over
