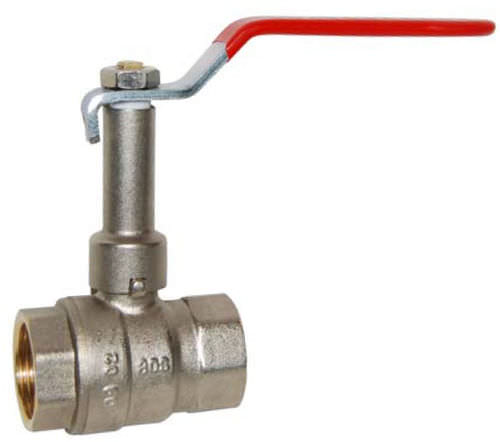

Ball valve 615 series

leverdistributionfor water

This device is a reversible handle with an ACS number on it used for water distribution. The handle is designed as either flat steel or butterfly handle. Its marking body also has ACS, manufacture date and logo. The temperature rating reaches a maximum of +120 °C and the maximum pressure PN amounts to 25 bars up to DN 1, 20 bars for DN 11/4 and 11/2 ,16 bars for DN 2". 4MS brass bail valves with fixed stem extension with full bore for drinking water and water distribution. PTFE packing and solid bail. Fixed stem extension to protect the insulation. Réversible Steel handle with Dacromet coated nut. SPECIFICATIONS : • - Full bore • - Large fiat sealing face • - Fixed stem extension • - Solid bail • - PTFE packing • - Fiat Steel or butterfly handle • - Marking body * 80S “ with ACS. fabrication date and logo • - ACS number on the handle • - Réversible handle • - Hole on the handle allowing the lockmg of the valve (thanks to a nlsan clamp) USE : • - Water distribution • - Min Température Ts : - 10°C • - Max Température Ts :+ 120°C • - Max Pressure Ps : 30 bars up to DN 1“. 20 bars for DN 1“1/4 and 1*1/2,16 bars for DN T RANGE ; • Female / Female with red fiat Steel handle Ref. 615 from DN 3/8* to 2" Female / Female with blue fiat Steel handle Ref. 6151 from DN 3/8" to 2*
