Butterfly valve 1156 series

leverisolationfor oil

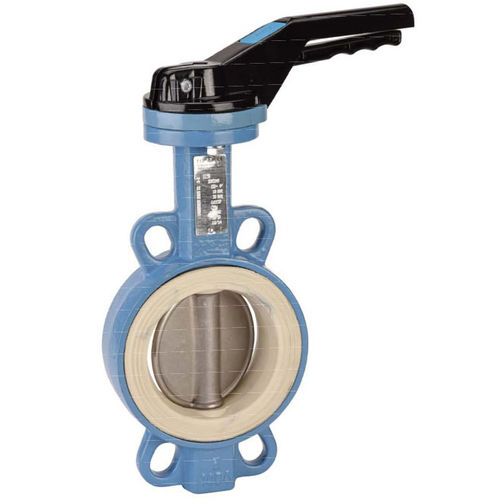

The 1156 series is manufactured by Sferaco, and is a wafer-type butterfly valve that is integrated with a long neck for isolation. The unit also incorporates an ISO 5211 mounting pad. The body of the valve is rilsan-coated with a thickness that ranges from 250 microns up to 300 microns. Between flanges there is ISO PN10/16 from DN32/40 to 400 and ISO PN20 ANSI150 from DN40 to 400. It also has a full crossing stem, a detachable seat, and a lever that has up to 9 positions with a locking device up to DN200, but would not lock from DN250 up to DN300. The 1156 series has a maximum pressure capacity of up to 16 bar. There is an option for the stem to be extended up to 75 mm in length. SPECIFICATIONS ; • - Long neck for isolation • - ISO 5211 mounting pad • - Wafer type • - Between flanges PN1Û/16 from DN32/40 to 400 and Class 150 (PN20) from DN40 to 400 (over on request ) • - Betwwen flanges PN10 from DN45Û to DN 1400 • - Full Crossing stem • - Removable EPDM seat • - Stainless Steel dise up to DN100 • - Ductile iron dise with black nlsan coating +/- 300 p over DN100 • - 9 positions lever with locking devee up to DN200 . stop in ail positions but non lockable from DN250 to 300 • - Rilsan coated body color RAL 5024.250-300 microns thickness • - Stem extension 75 mm length ( option ) • - Square lever 30x30 mm for spécial key ( option ) USE: • - Fluids : Cold and hot water. drinkable water • - Min and max Température Ts : From -20°C to + 110°C • - Max Pressure Ps : 16 bars up to DN300,10 bars over (see graphs page 5)
