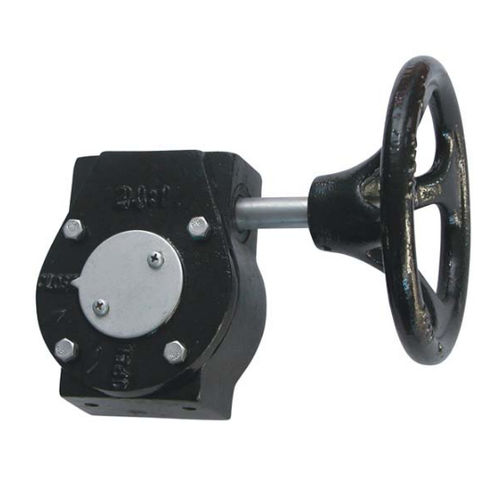

Worm gear reducer 1198 series

right angle1 - 2 kNmfor butterfly valves

The tool is a wafer type with long neck for isolation, and an ISO 5211 mounting pad. It has between flanges ISO PN10/16 from DN32 to DN600 and ISO PN20 ANSI150 from DN 40 to DN 600 and ISO PN10 from DN 700 to DN1200. Its full crossing stem is up to DN600 with 10 positions lever and locking device up to DN600. It also has a vulcanized EPDM seat with a ductile iron disc which is nickel coated that has 20-30 microns thickness and an epoxy painting RAL003 80 microns thickness. SPECIFICATIONS : • - For TTV butterfly valves • - Ingress protection grading IP65 • - Worm wheel type • - Direct mouting on ISO 5211 mounting pad • - Carbon Steel handwheel • - Carbon Steel shaft • - Aluminium body RANGE : Gearbox IP65 Ref. 1197 from DN 32 to DN 1400 for TTV butterfly valves
