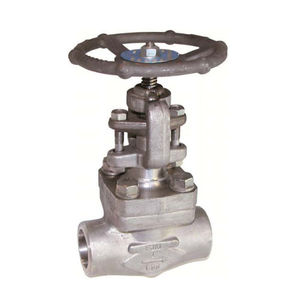

Globe valve 452 series

with handwheelpetroleumfor steam

This tool is suitable for steam or high-pressure purposes like those in the petroleum industry. It is made from forged carbon steel or stainless steel. For carbon steel types, it comes with a Vz stellite. On the other hand, the stainless steel types are equipped the standard SS 316. It also has a bolted bonnet and gland pack. This tool can withstand a maximum pressure of 138 bars. For steel types, the temperature threshold ranges from -29°C to 538°C. The carbon types have temperature ranges of - 29°C to + 425°C. Forged stainless Steel globe valve TRIM10 SW Class 800 standard bore for petroleum industry, steam, oil and gas and high pressure. Rising and rotating stem (OS&Y) with bolted bonnet. Graphite packing and stainless Steel + graphite bonnet gasket. Compatible with explosive atmosphère, ATEX Zone 1&21 and Zone 2&22. SPECIFICATIONS : • - Respect the flow direction ( mdicated by the arrow ) • - Standard bore • - Rismg rotating stem (OS&Y) • - Bolted bonnet and gland pack • - Forged stainless Steel F316 • - Trim 10 standard AISI 316 • - Class 800 USE : • - Petroleum industry. steam. high pressure • - Min and max Température Ts : - 49°C to + 538°C • - Max Pressure Ps : 132 bars ( see graph )
