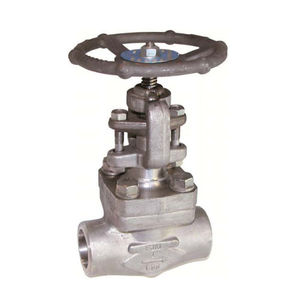

Globe valve 453 series

with handwheelpetroleumfor steam

The 412 series is a globe valve manufactured by Sferaco. It is suitable for the petroleum industry, and in environments with high pressure. The globe valve can either be made out of forged carbon or stainless steel. It features a rising rotation stem and a reduced bore. It should be positioned by following the direction shown by the arrow. 412 series has a nominal diameter of DN10 to DN40. The device operates within a temperature range of -29°C up to +538°C for stainless steel type, and -29°C up to +425°C for carbon steel type. It has a maximum working pressure of 138bar. SPECIFICATIONS : • - Respect the flow direction ( mdicated by the arrow ) • - Standard bore • - Rismg rotating stem (OS&Y) • - Bolted bonnet and gland pack • - Forged stainless Steel F316 • - Trim 10 standard AISI 316 • - Class 800 USE : • - Petroleum industry. steam. high pressure • - Min and max Température Ts : - 49°C to + 538°C • - Max Pressure Ps : 132 bars ( see graph )
