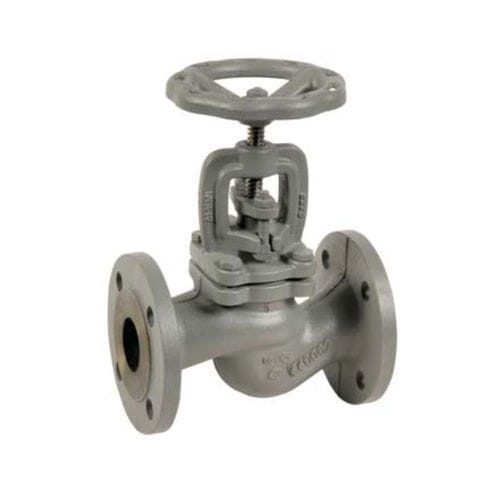

Globe valve 479 series

with handwheeldistributionflange

The machine has grey painting RAL 7011-7012, bolted bonnet and organ packing, rising rotating stem and handwheel, Flanges R.F. ISO PN16 and lastly, Respect the flow direction ( indicated by the arrow ). To continue, the machine is for all common fluids, the minimum and maximum Temperature Ts is - 10°C to + 300°C, Max Pressure PN is 16 bars, the stem must be kept lubricated, Do not use for convector fluid, Tighten the organ packing in commission and lastly, the steam is 10 bars maximum. Cast iron globe valve flanged PN16 for setting or closing on networks of Heating, water distribution and watering. Graphite packing an gasket. Bolted bonnet and packing for an easy maintenance. SPECIFICATIONS : • - Respect the flow direction indicated by the arrow • - Rismg rotating stem and handwheel • - Bolted bonnet and gland pack • - Stainless Steel seat • - PN16 Flanges R.F. • - Paintmg RAL 7011 grey color. 90 pm thckness USE: • - Heatmg. water distribution and watering • - Min and max Température Ts : - 10°C to + 120°C • - Max Pressure Ps : 16 bars up to DN150. 14 bars for DN200. 9 bars for DN250 (see graph page 3) • - Keep greased the stem • - Do not use for steam • - Tighten the gland packing dunng the settmg
