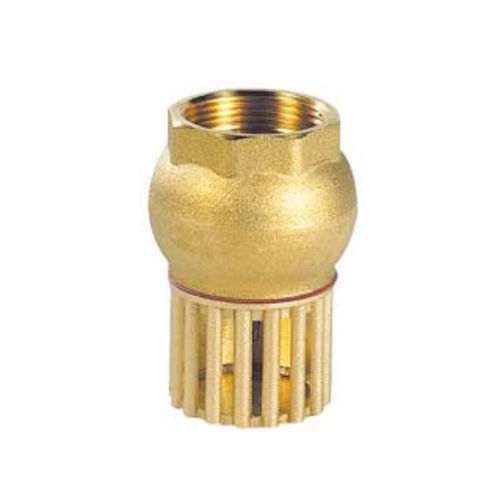

Disc check valve 304 series

femalebrasswith strainer

SPECIFICATIONS ; • - Respect the flow direction indicated by the arrow • - Female / female type • - Nylon throttle • - Perfect centering of the throttle on the seat thanks to the double axial and latéral guidance • - Low opening pressure • - Better mechanical strength thanks to the brass CW617N body • - Ail positions with SS 302 spring • - Excellent low and high pressure tightness thanks to the NBR gasket USE: • - Heatmg. drinkable water. cold and hot water • - Min Température Ts : - 10°C • - MaxTemperature Ts :+ 110°C • - Max Pressure Ps : 16 bars up to DN 1*. 10 bars from 1"1/4 to 2“ and 8 bars over OPENING PRESSURE : • Opening pressure between 20 and 200 mbar RANGE : Threaded BSP cylindrical female from DN 3/8‘ to DN 4“
