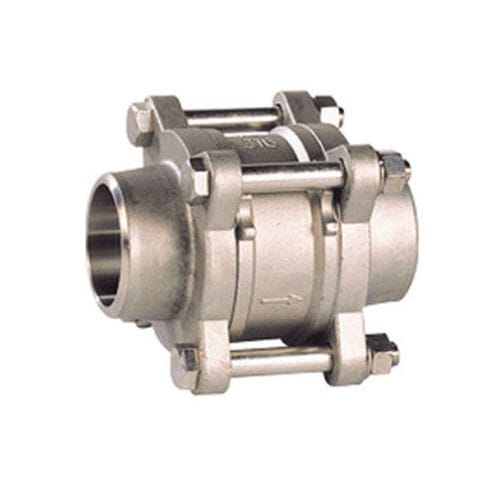

3-piece check valve 381 series

discweldfor the chemical industry

This tool is made from stainless steel. It has 3 pieces spring type. While working in applications with a minimum working temperature of 20°C and a maximum temperature of 200°C, the tool is also capable of withstanding 63 bars of pressure. The device can work in different positions in accordance with the flow direction. This tool is suitable for industries that are either pharmaceutical or petrochemical. SPECIFICATIONS : • - Stamless Steel stamped check valve • - Ail positions (respect the flow direction indicated by the arrow) • - Short length • - Minimum backpressure for tightness : 0.5 bar up to DN1*1/2.1 bar from DN2" to DN4" USE : • - Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed • Max Température Ts 10°C • Mm Température Ts :+ 150°C • - Max Pressure Ps : 16 bars RANGE : • - AISI 316 body Female / female BSP cytindncal threaded Rof. 326 from DN 1/4“ to DN 4“ • - AISI 304 body Female / female BSP cylindrtcal threaded Rof. 327 from DN 1/4“ to DN 4“
