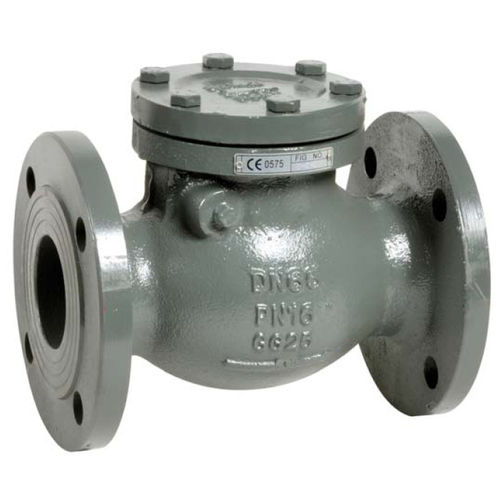

Swing check valve 360 series

flangefor waterstainless steel

It is a swing check type of tool in a vertical position with ascendant fluid or in a horizontal position. It has an ISO PN10/16 flanges and bolted bonnet. It is mainly used for heating, watering and watering distribution. It has a minimum and maximum temperature of - 10°C to + 120°C for metal seat type Ref.360, while a minimum and maximum temperature of - 10°C to + 80°C for EPDM seat type Ref.362. It has a maximum pressure of 16 bars. The tool should not be used with pulsatory speed. Its maximum speed should be at least 3 M. 1 sec. SPECIFICATIONS ; • - Ail positions thanks to the stainless Steel spnng • - Respect the flow direction indicated by an arrow on the body • - F langes R.F. PN10/16 up to DN150. PN16 from DN200 to DN300. PN10 over • - With Steel stramer basket and 6 mm mesh ( Ref. 363 ) • - Weak head loss thanks to the cylindncal internai designing • - Anti-corrosion epoxy internai and extemal pamtmg blue color RAL 5017.100 p thickness • - Bronze bushing to avoid blocking of the dise • - Drilled boss on request for bypass or to check the thickness • - Disc designed for a better hydrodynamism • - Silent solution • - Minimum back pressure for tightness : 0.2 bars USE: • - Water distnbution • - Min Température Ts 10°C • - Max Température Ts :♦ 120°C • - Max Pressure Ps : 16 bars up to DN300.10 bars over RANGE • - Flanged PN1Q/16 from DN50 to DN 150. PN16 from DN 200 to DN 300 and PN10 for DN350 to 600 Ref. 366 • - Flanged PN1Q/16 from DN50 to DN 150 and PN16 from DN 200 to DN 300 with Steel stramer basket Rof. 363
