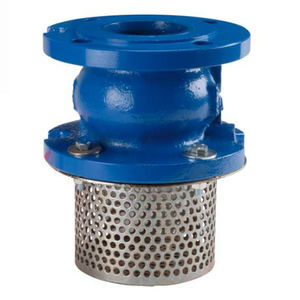

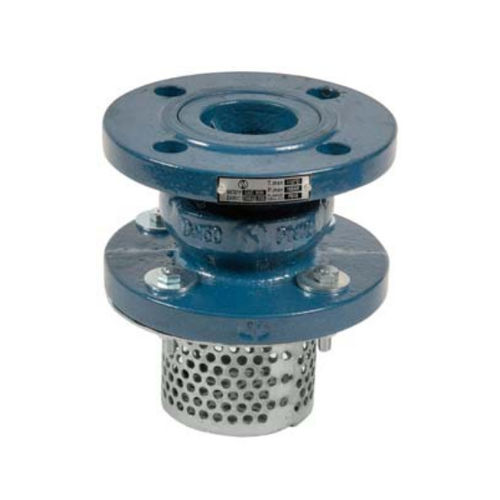

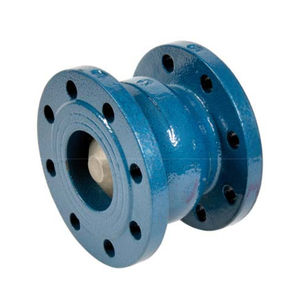

Disc check valve 368 series

flangefor waterstainless steel

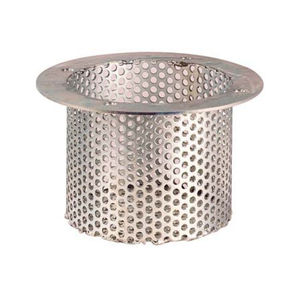

The product contains a stainless steel spring which allows it to be rotated to different positions. It has flanges which are ISO PN10/16 up to DN150 andISO PN16 from DN200 to DN300. It also has a steel strainer basket with a 6 mm mesh, and a bronze bushing to prevent blocking of disc. Its design includes anti-corrosion epoxy with blue painting on its internal and external parts. Its boss can be drill upon request to check its thickness. Furthermore, the minimum back pressure for tightness is 0.2 bars. SPECIFICATIONS ; • - Ail positions thanks to the stainless Steel spnng • - Respect the flow direction indicated by an arrow on the body • - F langes R.F. PN10/16 up to DN150. PN16 from DN200 to DN300. PN10 over • - With Steel stramer basket and 6 mm mesh ( Ref. 363 ) • - Weak head loss thanks to the cylindncal internai designing • - Anti-corrosion epoxy internai and extemal pamtmg blue color RAL 5017.100 p thickness • - Bronze bushing to avoid blocking of the dise • - Drilled boss on request for bypass or to check the thickness • - Disc designed for a better hydrodynamism • - Silent solution • - Minimum back pressure for tightness : 0.2 bars USE: • - Water distnbution • - Min Température Ts 10°C • - Max Température Ts :♦ 120°C • - Max Pressure Ps : 16 bars up to DN300.10 bars over RANGE • - Flanged PN1Q/16 from DN50 to DN 150. PN16 from DN 200 to DN 300 and PN10 for DN350 to 600 Ref. 366 • - Flanged PN1Q/16 from DN50 to DN 150 and PN16 from DN 200 to DN 300 with Steel stramer basket Rof. 363
