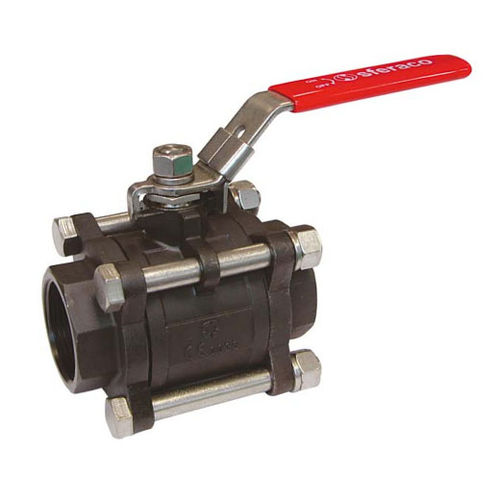

Ball valve 796 seriesleverthreaded3-piece
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Body
- threaded, 3-piece, carbon steel, PTFE
- Applications
- for the chemical industry, for oil industry applications, for pharmaceutical applications
- Other characteristics
- full-flow
- DN
Max.: 4 in
Min.: 0.25 in
- Pressure
Max.: 63 bar
(913.7 psi)Min.: 20 bar
(290.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
The valve is built with a full bore and PTFE packing, complete with a locking device and anti blow-out system. It is finished with a black oxide coating for use on carbon steel valves of Ref. 796/797/798 and 7961. Optional components include an SS 304 stem extension and a blue handle cover alternative.
SPECIFICATIONS :
• - Full bore
• - Anti blow-out stem
• - PTFE packing
• - Locking device
• - Stem extension in Al SI 304 ( option )
• - Black phosphated finish, thickness 5 pm
USE:
• - Compatible with common fluids of 2rc group
• - Min and max Température Ts : -20°C to + 180°C
• - Max Pressure Ps : 63 bars up to DN20. 40 bars from DN25 to 50. 25 bars from DN65 to 80 and 20 bars for DN100 (see graph under)
• - Compressed air : 10 bars max
• - Do not use with steam
