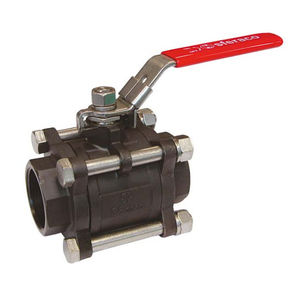

Ball valve 797 serieslever3-pieceweld
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Body
- 3-piece, weld, stainless steel, carbon steel, PTFE
- Applications
- for the chemical industry, for oil industry applications, for pharmaceutical applications
- Other characteristics
- full-flow
- DN
Min.: 8 mm
(0.315 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 20 bar
(290.1 psi)Max.: 63 bar
(913.7 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 180 °C
(356 °F)
Description
This full bore valve contains special locking device and has a stem extension made of stainless steel 304. It has a PTFE packing and an anti-blow out stem. This valve is also finished with black oxide for carbon steel valves. The client is given the option to choose between blue or red handles.
SPECIFICATIONS :
• - Full bore
• - Anti blow-out stem
• - PTFE packing
• - Locking device
• - Stem extension in Al SI 304 ( option )
• - Black phosphated finish, thickness 5 pm
USE:
• - Compatible with common fluids of 2rc group
• - Min and max Température Ts : -20°C to + 180°C
• - Max Pressure Ps : 63 bars up to DN20. 40 bars from DN25 to 50. 25 bars from DN65 to 80 and 20 bars for DN100 (see graph under)
• - Compressed air : 10 bars max
• - Do not use with steam
