Dry dial pressure gauge 1616 series
threadedstainless steelBourdon tube

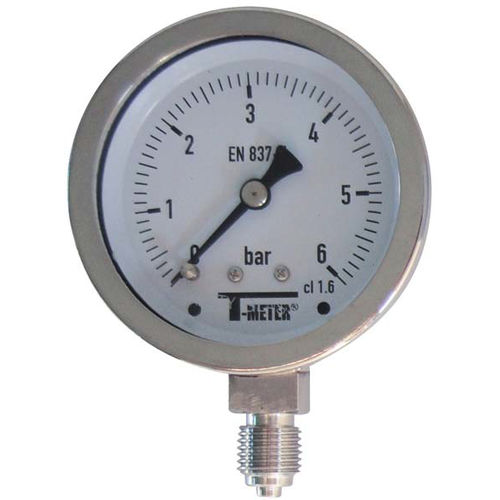

Dry dial pressure gauge - 1616 series - SFERACO - threaded / stainless steel / Bourdon tube
Dry dial pressure gauge - 1616 series - SFERACO - threaded / stainless steel / Bourdon tube
Add to favorites
Compare this product


Characteristics

Display
dry dial
Mounting
threaded
Material
stainless steel
Technology
Bourdon tube
Protection level
IP65
Applications
for air, for hydraulic applications
Pressure

Min.: -1 bar
(-14.5 psi)

Max.: 60 bar
(870.23 psi)

Description

This Single-jet vane wheel water meter is engineered with dry vanes. They are capable of operating with 0 °C for ambient temperatures of -20 °C and 90 °C for ambient temperatures of +60 °C. They can also operate in pressures up to 60 bar. Moreover, they have been fitted with a safety glass. SPECIFICATIONS : • - Ail stainless Steel • - Stainless Steel mechanism • - Dry dial ( to be fitted in ) • - Safety glass • - 1.6 dass • - Protection IP65 • - Bottom connection BSP threaded USE : • - Not for viscous or crystallizing liquid • - Min and max Température Ts : 0°C to +100°C ( ambience -20°C à + 60°C ) RANGE : Ail stainless Steel pressure gauge with dry dial 0 63 with bottom BSP 1/4" male connection, range -1/+1 to 0/60 bars Ref. 1616 Ail stainless Steel pressure gauge with dry dial 0 63 with back BSP 1/4" male connection, range -1/+1 to 0/60 bars Ref. 1626
