Strainer filter 211 series

waterwith cartridgebrass

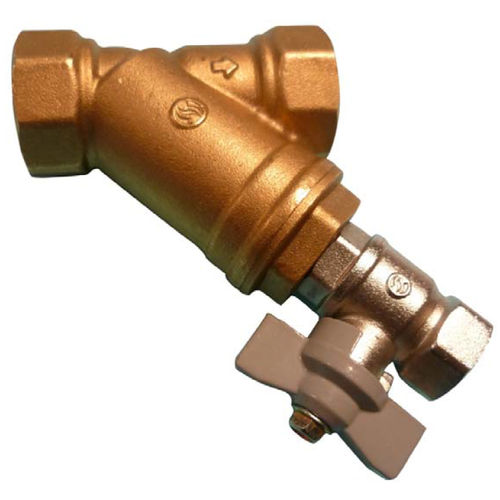

The 211 Series is a series of bronze Y-strainer manufactured by Sferaco. Equipped with a stainless steel removable filter, a female threaded BSP, and a draining valve, it has the ability to deliver a maximum pressure of 16 bar at a maximum temperature ranging between 0°C to 120°C. In addition, it can be used for different applications including the water distribution. SPECIFICATIONS : • - Removable stainless Steel filter • - Female / female type • - Horizontal or vertical position (respect the flow direction indicated by the arrow ) • - Mesh 8.5/10° mm ( 850 p ) USE: • - Water distribution and watenng • - Min Température Ts : - 10°C • - Max Température Ts :+ 120°C • - Max Pressure Ps : 16 bars up to DN 2*. 10 bars over standards: • - Fabrication according to ISO 9001 :2015 • - DIRECTIVE 2014/68/EU : Products excluded from directive ( Article 1, § 2.b ) • - French water agreement A.C.S. N° 16 ACC LY 255 Threaded female BSP cylindrical according to ISO 228-1
