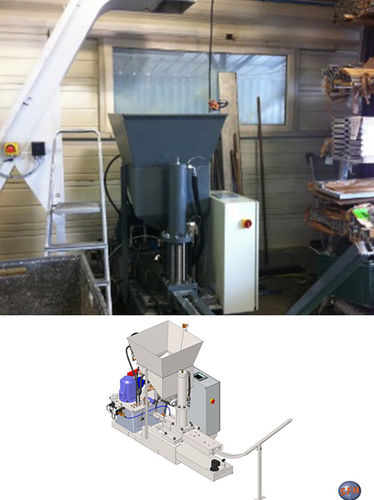

Stationary waste compactor PM Series

SFH compactors allow the recycling of your chips and sludges by reducing their size and humidity. They can be seamlessly integrated in a chip treatment chain. Recycle your chips. Briquette fabrication from chips and machining sludges: an economic and ecological saving. Reuse of cutting fluids and reduction of effluent quantities for external treatment. Transformation of machining sludges in briquettes directly usable in steelworks. A financial saving in terms of waste control On-site integration for the recycling industry. We can compact steel, titanium, brass, stainless steel, cast iron… Cycle Time: 2 cakes per minute Size of briquette: Ø40 or 70 or 90 or 120 mm, depending capacity and model of machine Matrix and punch treated Hydraulic power unit Oil cooling system for continuous operation of the machine Safety equipment and temperature control Electronic position sensor for adjustment of limits Models : Model PM1 20T capacity until 20 Kg/ hour for aluminium chips, power of compression: 1592 Kg/cm² Model PM1 25T capacity until 20 Kg/hour for aluminium, power of compression 1990 Kg/cm² Model PM2 60T capacity until 70 Kg/hour for aluminium, power of compression 1559 Kg/cm² Model PM2 80T capacity until 70 Kg/hour for aluminium, power of compression 2079 Kg/cm² Model PM3 H 150T capacity until 500 Kg/hour for aluminium, power of compression 1326 Kg/cm² Model PM3 H 200T capacity until 500 Kg/hour for aluminium, power of compression 1768 Kg/cm²
