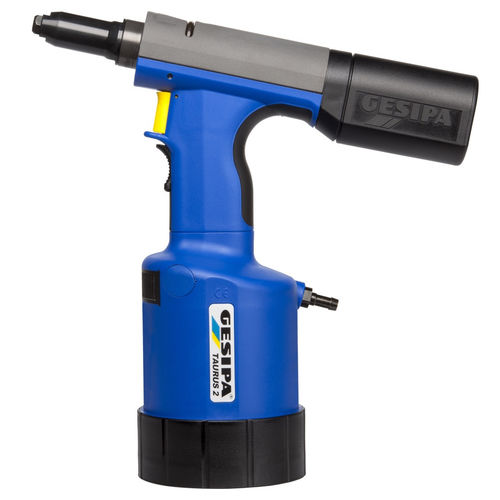

TAURUS® 2 (Hydro-pneumatic blind rivet setting tool)
Working range
Sets blind rivets up to 5 mm Ø all materials
and up to 6 mm Ø alu/steel (max. mandrel
dia. 3.2 mm)
Technical data
Weight: 1.6 kg
Operating air pressure: 5-7 bar
Air hose connection: 6 mm Ø (1/4’’)
Air consumption: approx. 2,3 ltr. per rivet
Traction power: 11.000 N at 6 bar
Stroke: 18 mm
Equipment
Nosepieces:17/27, 17/29, 17/32 and 17/36,
maintenance wrench SW12/14, SW14/17,
1 hydraulic oil bottle 100 ml,1 oil refi ll can,
operating instructions with spare parts list
