Areas of use
• All blind rivets and lockbolts up to a mandrel
breaking force of 50 kN
• Same performance and technical characteristics
as the respective individual units in the TAURUS®
series 1-4, 5-6 with different stroke

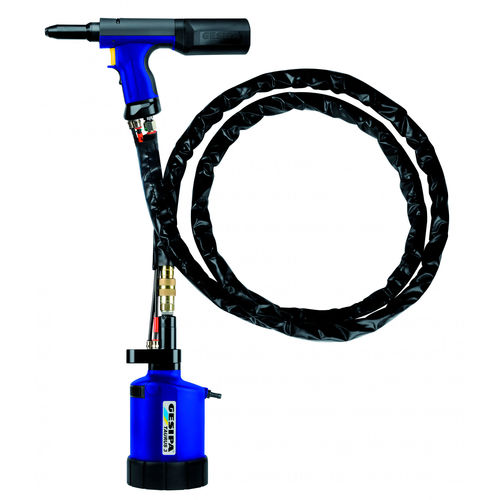

• 3 metres hose length between pressure
transducer and setting pistol
Common technical data
Operating air pressure: 5 to 7 bar
Air hose connection: 6 mm (1/4“)
Noise emission: max. 79 dB
Vibrations: < 2.9 m/s²
Advantages
• Low weight of the hand held tool
• Ideally suited for setting of blind rivets and
lockbolts in poorly accessible locations
• Also perfectly designed for fixed installation in
production lines or semi-automatic workstations
• Can be combined with almost all supplements and
options of the TAURUS® series: head extensions,
mandrel containers, rivet counting units, process
control, pressure trigger and remote control
