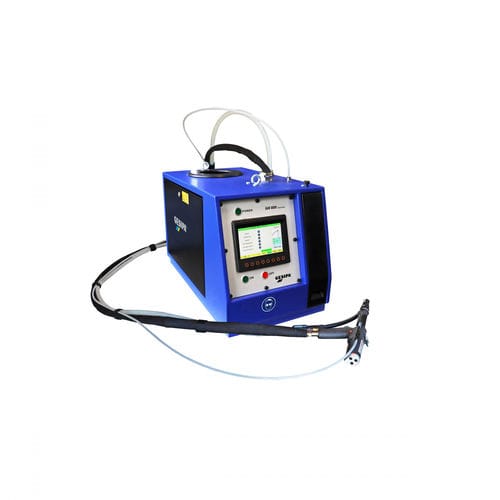

Blind rivet riveting unit GAV 8000 electronic

GAV 8000 eco (Automatic riveting machine) • 2.4 mm up to 6.4 mm Ø alu and copper • Up to 6 mm Ø steel & 5 mm Ø stainless steel • Up to fl ange diameter 11.4 mm • Rivet body lengths above 30 mm • Traction power up to 11,770 N at 6-7 bar air pressure Productivity and savings potential • Up to 40 blind rivets can be processed every minute • No trained personnel required for operation • Can be easily integrated into fully-automatic production systems • Electronic system controls • Intuitive menu guidance via navigation and function keys • Function display • Maintenance display and simple fault diagnosis • Customer-specifi c software modifi cation is possible • Ideal for applications that do not require any process monitoring • Rivet mandrels are disposed of by vacuum system • Spring loaded trigger system as an optional extra available • Can be integrated into the system or operated independently • Interface for external memory programmable control system (SPS) can be realised via the GESIPA® interface
