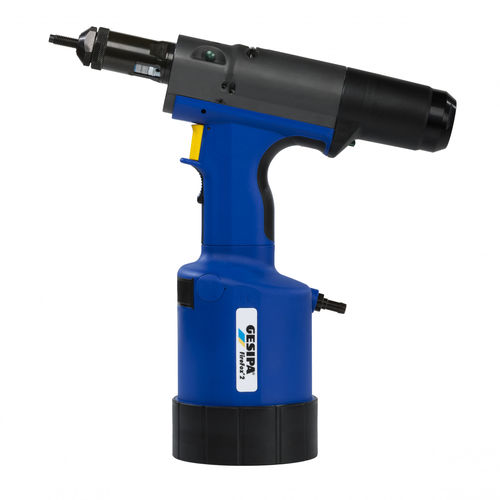

Blind rivet nut setting tool FireFox® 2

pneumaticnut

The FireFox® 2 can be optionally controlled via the stroke or setting force setting. Advantages • Fast and precise setting force adjustment with colour-coded setting ring (1) • New stroke scale quick and easy to set even under poor light conditions • Maximum stroke clearly identified by blue ring on stroke scale (2) • Throttle plate: Automatic throttle for even faster and protective setting as from M3 blind rivet nuts • PTFE (Teflon®) seal. PTFE seal and optimised pilot holes improve the service life of the slide valve Working range Sets blind rivet nuts from M3 to M10 in all materials as well as M12 in aluminium and steel. Technical data Weight: 2.4 kg Adjustable stroke,max: 10mm Adjustable traction force, max: 22 kN at 6 bar Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air consumption: approx. 2 to 4 ltr. perrivet nut
