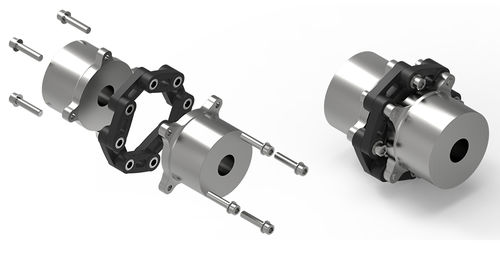

Elastomer coupling SGFlex-LCtorsionally flexiblefor blowerstransmission
Add to favorites
Compare this product
Characteristics
- Type
- elastomer, torsionally flexible
- Product applications
- for blowers, transmission, for shafts, for pump, for presses, for mechanical power transmission, engine, for paper machines, for railway vehicles, generator, for the cement industry, for printing machines, for gears, for test benches, for excavators, for compressors, gearbox, for rolling mills, for mixers, for agitators, for conveyor, industrial
- Construction
- shaft-hub, double, 3-part, double-jointed, flywheel, with clamp, with clamping ring
- Performance
- zero-backlash, maintenance-free, high-performance, low noise and vibration, highly-elastic, high load capacity, non-lubricated, heavy-duty
- Other characteristics
- torque, ATEX, custom-made, compensating, anti-vibration, with high torsional flexibility, explosion-proof, disassemblable, for explosive areas, variable-speed
- Installation system
- flange
- Torque
Min.: 3,900 Nm
(2,876.4924 ft.lb)Max.: 44,200 Nm
(32,600.247 ft.lb)- Rotational speed
Min.: 3,400 rpm
(21,362.83 rad.min-1)Max.: 4,100 rpm
(25,761.06 rad.min-1)
Description
The new SGFlex-LC coupling system covers the torque range between our SGFlex-3F and TENBEX-ECO coupling systems. The SGFlex link assemblies inside the coupling work with seperate link elements which are made of vulcanised-in cord inlays with Tenpu® fiber technology. The single link elements are mounted to a robust and highly durable link assembly in order to ensure a reliable torque transmission. The flex coupling system SGFlex-LC is a torsional flexible, non-shiftable coupling. It is used to compensate radial, axial or angular displacements of rotating components, to dampen vibrations in the drive train and to minimise torque peaks.
Catalogs
Link Coupling SGFlex-LC
3 Pages
