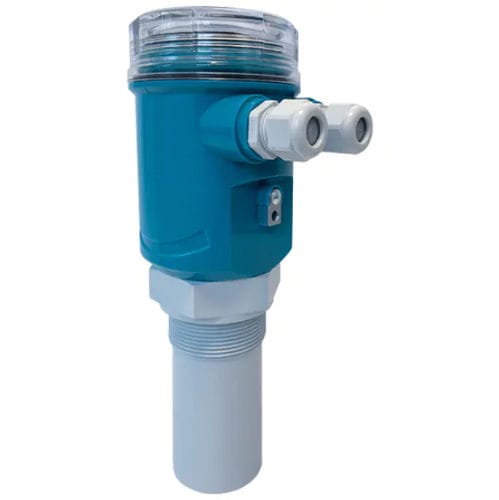

Radar level transmitter RPL75

for liquidsModbus4-20 mA

RPL75 is a compact unit with removable programming display, a module for level measurement of liquids. Available in 4-wire version, with 2 programmable relays on different intervention thresholds and Modbus RTU serial communication. Connection to the 2 “G threaded process made of PP (moplen) for compatibility with chemically aggressive environments. The measuring range is between 0.5 and 20 meters and is guaranteed only in the case of conductive liquids. The polycarbonate housing is equipped with a transparent cover for an immediate reading of the values via the VL601 display (opt.). Installation examples Closed tank – Suitable for measurements on liquids, even viscous and chemically aggressive, even with the presence of foams or vapors – Applications where continuous measurement of the product level is required Environmental monitoring of waterways – Typically used for continuous level measurement for monitoring natural or artificial watercourses such as rivers or canals - Open tank – Finds its use in continuous level measurement in tanks containing water, extremely functional even in the presence of foams – Particularly suitable for measurements in purification plants – Can be used in lifting and pumping stations - Silos and hoppers – Can be installed where the measurement of the level of granulated products is required – Suitable for food processes – Useful for measuring aggregates, sands etc.
